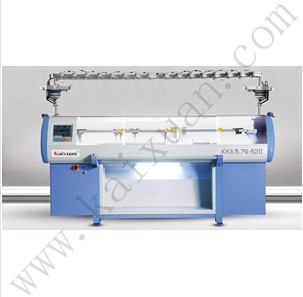

KX3.5.7G-52II
Computerized Flat Knitting Machine
Features:
The 2.8 group of yarn nozzle configuration on both side of 4 guide rails, in bed any position switching spit ( preparing special dotted with intarsia special spit device. ). Configuration unique yarn feeder control the tension of the yarn, avoid the yarn tension affect the fabric weaving quality, stable quality, ensure the overall weave quality consistency. When the machine is in operation process, the broken yarn knot, float, rewind, end of shift bed number, did not return, the firing pin pin, program error situations, automatic alarm, and no safety protection device. Using the LCD display screen industry, touch screen graphical user interface, system expansion memory up to 1G, can store a large quantity of flower type file, according to production needs at any time to use. Monitor screen: can display various operating parameters and is braided line degree value, and when the machine is in operation at any time to adjust, maximize the convenience of operation and saving time .Printing system and control system ( software) upgrade convenient, free allocation. Multi language operation version, support Chinese, English and other language edition body can also according to customer demand for setting the desired languages.
Technical parameters:
Needle distance
5G、7G、9G、12G、 14G and 3、5、7 Variable gauge
Weaving amplitude
52、56(Inch)
Knitting speed
32 segment selection, reached a maximum speed of 1.2m / s, using AC servo motor control, servo motor using precise feedback control and combination of high-speed computing power of the digital signal processing ( DSP ), 1GBT control to produce accurate current output
Knitting system
Single / double / system, single head / three system
The knitting function
Needle, hanging mesh, eyelet, intarsia, jacquard, Ming needles and other rules of flower weaving
Needle bar shifting
Using AC servo motor control, needle moving range up to 2 inches, with accurate tuning function, return to the starting position after power resumption
Probe alarm system
Probe alarm safety device to achieve up and down, left and right swing alarm function, breaks through the present flat knitting machine field probe single swing around and realize the detection of the characteristics of the kinetic energy
Read pin mechanism
Adopting international advanced Holzer induction rectangular wave tracking sensor technology
Needle turning function
Triangle composite design, single / double system can separatesimultaneous needle, needle can also be a system, another system knitting, achieve efficient production
Coil density
Stepper motor control, with 32 sections for selection, subdivision technology, adjustable range: 0650 degree, can more accurately control garment piece length
Sinker system
Stepper motor control, can be adjusted according to different knitting, to achieve a wide range of needle and needle effect
Batching system
Computer program instructions, stepper motor control, 32 rally selects, adjustable range: 0-100
Power supply
Single phase 220V / three-phase 380V, using advanced CMOS technology, blackouts in the moment of memory recovery function
