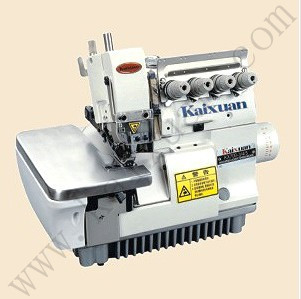

KX700-3/700-4/700-5/700-5H
Super High-speed Overlock Sewing Machine Series
  Features:
  The needle bar is likely to suffer oil leaking easily when the machine works at high speed. There fore, it adopts forced oil-returning device to ensure the sufficient lubrication of the needle bar and also to effectively prevent the needle bar from suffering oil leaking. Outside-mounted rocker can make the a djustment of the upper looper easy. It makes the oil fully supply the rocker and ensure the sufficient lubriation of the rocker, and pervents oil leaking an the same time.
HR silicon oil device makes synthetic fibre thread, which is of weak heat resistance, applicable to high-speed sewing machine, prevents thread breakage and cloth melting at high degree, and makes needle feet steady and beauty.
tour

Technical parameters:
Model
KX700-3
KX700-4
KX700-5
No. of Needles
1
2
2
No. of Threads
3
4
5
Stitch Width mm
4
4
4
Needle



Differential Ratio
0.7-2
0.7-2
0.7-2
Needle Gauge mm
-
2
3
Speed spm
7000
6500
6500
Presser Lift Height mm
5.5
5.5
5.5
Gw/Nw kg
26/35
26/35
26/35
Packing Size mm
450×350×475
450×350×475
450×350×475
